Sub-Zero wine column repair in Cupertino
Full-height, panel-ready wine columns hold rare bottles within a degree. When a zone drifts or the glass starts sweating, the fix is precision work — not a parts swap.
A Sub-Zero wine column that drifts off temperature, sweats inside the glass, hums louder than usual, or alarms on one zone almost always points to a fan, sensor, damper, door seal or control board — rarely the compressor. Because integrated columns hold each zone within a degree, small faults show up fast. We run factory-spec diagnostics on built-in IW-30 and 424/427 storage for an $89 service call that is waived when you book the repair, install genuine OEM Sub-Zero parts, and back every job with a 365-day labor warranty.
925 reviews · 4.9 / 5
Why integrated wine columns fail — and why they are different

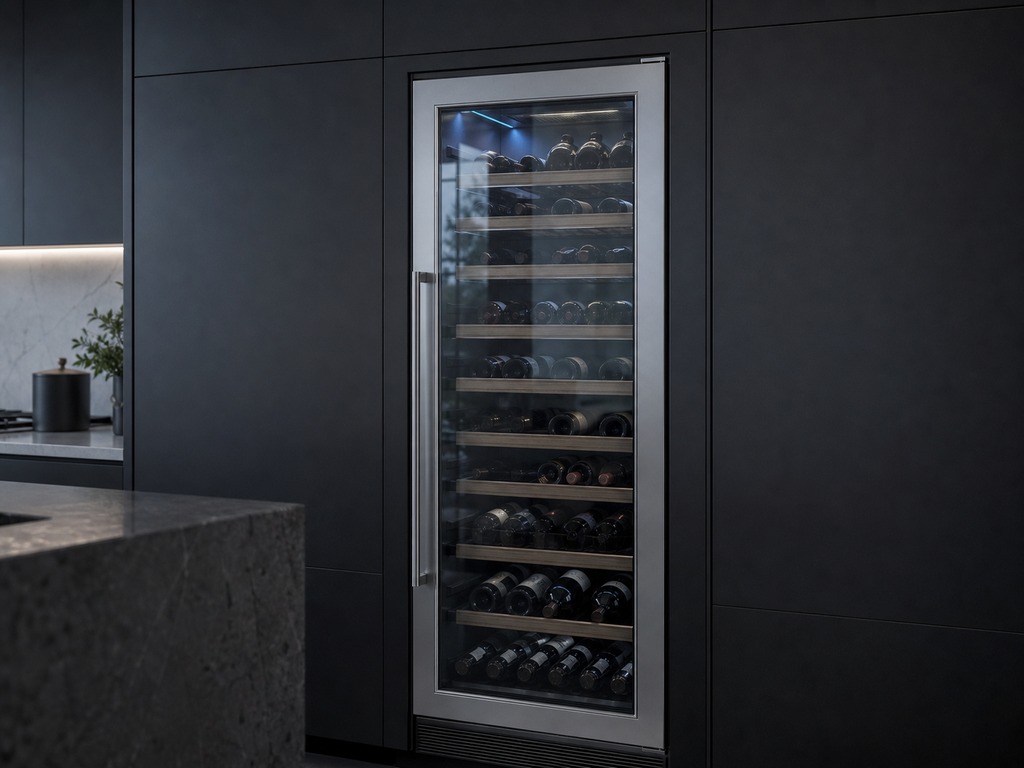

A full-height Sub-Zero wine column is a different machine from a small under-counter wine cooler. The Designer IW-30 and the 424/427 series are built to hold each zone within roughly a degree, run near-silent so vibration never disturbs sediment, and disappear behind custom cabinetry as a panel-ready built-in. That precision is exactly why faults reveal themselves early: a tired fan or a slow sensor that a beverage fridge would shrug off will pull a serious collection out of its window.
Most column failures fall into a handful of buckets — and only one of them is expensive:
- Zone temperature drift. A dual-zone column runs an upper and lower set point. When one zone wanders while the other holds, the cause is usually a circulation fan, a stuck damper, or a drifting thermistor — not the sealed system.
- Condensation and humidity faults. Wine storage runs a higher, controlled humidity than a fridge. A failing humidity element, a blocked drain, or a weak door seal lets the glass sweat and labels lift.
- Vibration. A worn fan bearing or a compressor mount that has aged out adds buzz that, over months, disturbs sediment in older bottles. Quieting it is a real repair, not a tolerance you live with.
- UV and door-seal degradation. The tinted, UV-treated glass and its gasket protect the cellar. A gasket that has flattened lets in warm, bright kitchen air and undermines the whole column.
- Control board and display faults. Set points that will not save, a dark or frozen display, or one-zone alarms often trace to the electronic control rather than refrigeration.
If your unit is a smaller under-counter cooler rather than a full-height integrated column, our general wine cooler repair page covers that. This page is for the panel-ready, cabinet-integrated storage that anchors high-end Cupertino remodels — the columns built into walnut and rift-oak runs near Apple Park and Main Street.
Symptom → likely cause → what to do
Match what your wine column is doing to its most probable fault before a small issue costs you a vintage.
| What you see | Likely cause | What to do |
|---|---|---|
| One zone warm, the other holds | Circulation fan, stuck damper, or drifting thermistor | Note which zone drifts; book diagnosis before bottles warm |
| Both zones reading too warm | Dirty condenser, condenser fan, or low refrigerant charge | Clear the grille; if still warm in an hour, call before loss |
| Glass and shelves sweating inside | Humidity control fault, blocked drain, or tired door seal | Wipe down, check the gasket, avoid frequent door opening |
| Audible hum or new vibration | Worn fan bearing or aged compressor mount | Do not ignore it — vibration disturbs sediment over time |
| Set point will not save / display dark | Control board or display module fault | Photograph the screen; do not keep cutting power to reset |
| One-zone temperature alarm | Sensor fault or a genuine temperature excursion | Photograph the code; move rare bottles; book same-day |
Causes are typical for integrated Sub-Zero wine columns; your exact fault is confirmed on site with factory-spec diagnostics.
What to check before you call
Four safe checks that take a few minutes and often explain a drifting column.
- 01
Read both set points
Confirm the upper and lower zones are set where you expect — a bumped touch panel is a common cause of an apparent fault.
- 02
Clear the condenser
Open the upper grille and look for a dust-blanketed condenser. Lint from a remodel chokes airflow and warms both zones.
- 03
Test the door seal
Close the door on a slip of paper; if it slides out easily, the UV-glass gasket may be letting warm kitchen air leak in.
- 04
Note the behavior
Which zone drifts, any vibration, condensation, or alarm code. Those details speed up a factory-spec diagnosis and get the right part on the van.
Protecting a six-figure kitchen during the repair
A panel-ready wine column is mortised into custom cabinetry and tied to a sealed refrigeration circuit. The risk in a Cupertino remodel is rarely the part — it is the surroundings. A column pulled without releasing it from the enclosure can scratch a custom fascia or chip stone, and that is the costly part of the kitchen, not the fan.
We extract and reseat columns the manufacturer-recommended way, protect the flooring, and reset the panel flush so the run reads as continuous cabinetry again. Work follows Sub-Zero service specifications, uses factory-grade tools, and finishes with genuine OEM Sub-Zero parts. If a diagnosis proves the fault really is the refrigeration circuit, that escalates to sealed system & compressor service — but on wine columns that is the minority outcome.
If a zone is still warm an hour after you have cleared the condenser and confirmed the set points, move rare bottles to a stable spot and book a diagnosis. Continuing to run a column with a failing fan or charge is the main way a modest repair grows.
What a wine column repair typically costs
Most column repairs are fans, sensors, seals or control parts. The $89 diagnostic is waived when you book the repair, and every job carries a 365-day labor warranty.
| Service | Range | Time | Notes |
|---|---|---|---|
| Diagnostic / service call | $89 | 45–90 min | Waived when you book the repair — model, temps, airflow, fascia/panel check |
| Door gasket / frost-line | $400–$950 | 1–3 h | Depends on model and gasket availability |
| Ice maker / water line | $290–$880 | 1–3 h | Valve, fill tube or ice module |
| Panel-ready pull-out & reseat | $250–$600 | 1–2 h | Cabinet-safe extraction, no fascia damage |
| Control board / sensor | $360–$1,300 | 1–4 h | Quote after electrical proof |
| Compressor / sealed system | $1,500–$3,800 | 2–6 h + parts | Requires pressure / electrical evidence |
Draft ranges for planning; final quote depends on model, parts, cabinet access and diagnosis.
Quick answers on wine column service
Fast answers to what Cupertino owners ask most about integrated Sub-Zero wine storage.
Is a wine column repair different from a wine fridge repair?
Yes. A full-height integrated column holds each zone within about a degree and runs near-silent to protect sediment — tolerances a small wine fridge never meets. The diagnostics, cabinet-safe extraction and parts are column-specific, which is why we treat them separately from a standard wine cooler repair.
My dual-zone column has one warm zone — is it the compressor?
Almost never. When one zone drifts while the other holds steady, the sealed system is usually fine — the fault is typically a circulation fan, a stuck damper or a drifting sensor. We confirm with factory-spec readings before quoting anything sealed-system related.
Can you service IW-30 and 424/427 series columns?
Yes. We have deep hands-on experience with integrated Sub-Zero columns, including the Designer IW-30 and the 424/427 storage series, single and dual-zone. Have your model number ready and we will confirm parts before the visit.
Will pulling the column damage my custom cabinetry?
Not when it is done correctly. We release the column from its enclosure the manufacturer-recommended way, protect the floor, and reset the panel flush. The cabinetry is the expensive part of the kitchen, so cabinet-safe extraction is built into how we work.
What Cupertino homeowners say
Our dual-zone IW-30 had the lower cellar drifting warm while the upper zone held perfectly. They traced it to a failing circulation fan, not the compressor another shop wanted to replace, and had the genuine OEM part the next day. The $89 call came off the bill and our walnut paneling was untouched.
Condensation was building on the glass of our integrated wine column and a couple of labels had started to lift. The tech found a blocked drain and a tired door gasket, cleared and resealed both, and explained the humidity side so it would not recur. Calm, precise, and no upsell.
The 427 column started humming loudly enough that I worried about the older bottles. They diagnosed a worn fan bearing, replaced it, and the unit is whisper-quiet again. Pulled it out of the cabinetry without a mark and the 365-day warranty made it an easy call.
Frequently asked questions
Why is my Sub-Zero wine column not holding temperature?
An integrated column that drifts off its set point is most often a circulation fan, a stuck damper, a drifting thermistor or a tired door seal — not the compressor. Because columns hold each zone within roughly a degree, these faults show up quickly. We prove the cause with factory-spec diagnostics for an $89 service call, waived when you book the repair, before quoting.
There is condensation inside my wine column — is that normal?
A little is normal because wine storage runs a higher, controlled humidity than a refrigerator. Persistent sweating on the glass or shelves usually means a humidity-control fault, a blocked drain, or a gasket that has flattened and is letting warm kitchen air in. All three are repairable without touching the sealed system in most cases.
My wine column hums or vibrates more than it used to — does it matter?
It does. Sub-Zero columns are engineered to run near-silent so vibration never disturbs sediment in aging bottles. A new hum usually points to a worn fan bearing or an aged compressor mount. Quieting it is a genuine repair worth doing, not a quirk to tolerate — especially for a serious collection.
The display or set points on my column stopped working — what is wrong?
When set points will not save, the display goes dark or freezes, or a single zone alarms, the cause is usually the electronic control board rather than refrigeration. Photograph any code, avoid repeatedly cutting power to reset it, and book a diagnosis. We install genuine OEM Sub-Zero control parts and back the labor for 365 days.
Can you repair a wine column built into custom cabinetry without damage?
Yes — that is the core of what we do in Cupertino remodels. We release the panel-ready column from its enclosure the manufacturer-recommended way, protect flooring and adjacent stone, and reset the fascia flush so the run reads as continuous cabinetry. Cabinet-safe extraction protects the most valuable part of the kitchen.
What does a wine column diagnosis cost in Cupertino?
The service call is $89 and is waived when you approve the repair. You get a written quote first, we use genuine OEM Sub-Zero parts, and every repair carries a 365-day labor warranty. Call (650) 668-5618 or book online with your model number ready for the fastest visit.
